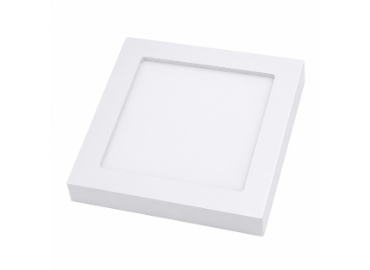

Square Surface Panel Light | 4W to 30W | No False Ceiling Needed | Up to 60 Months Warranty
The Square Surface Panel Light gives grid-aligned commercial spaces a surface-mount option — no cutout needed, so it can be added to an existing ceiling without cutting into the slab or false ceiling. Same performance as the Round series, in a square profile.
| Wattage | Lumens | Height (mm) | Outer (mm) | Available CCT |
|---|---|---|---|---|
| 4W | 400 | 35 | 80 x 80 | 3000K / 4000K / 6000K |
| 9W | 900 | 32 | 100 x 100 | 3000K / 4000K / 6000K |
| 12W | 1200 | 32 | 135 x 135 | 3000K / 4000K / 6000K |
| 15W | 1500 | 32 | 155 x 155 | 3000K / 4000K / 6000K |
| 22W | 2200 | 32 | 195 x 195 | 3000K / 4000K / 6000K |
| 30W | 3000 | 45 | 300 x 300 (1x1 ft) | 3000K / 4000K / 6000K |
Square surface-mount is the right pick when the ceiling already has a grid pattern and you want the fixture to align with it, without cutting into the ceiling. Sizing follows the same logic as the round version — smaller wattage for small rooms, working up to the 30W 1x1 ft unit for large commercial halls.
White finish, matte diffuser, aluminium housing for durable heat dissipation. No cutout required — mounts directly to the ceiling surface.
Up to 60 Months Warranty, BIS-approved LED driver, LM80-certified LEDs, 4Kv surge protection, short-circuit and open-circuit protection, instant on-off. Available in Economy and Premium builds, with a Smart version available.
